Solid-liquid separator

Solid-liquid separator

Datetime:2018-11-15

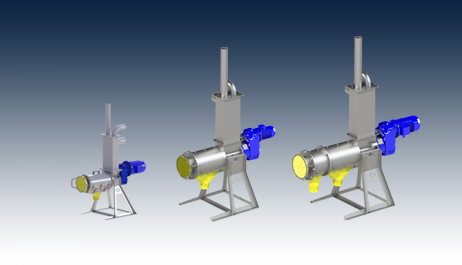

SEPCOM Horizontal is an innovative solid-liquid screw separation press. Special design features (such as compensatory hopper trough, self-regulating back pressure film and special helix) enable it to handle various materials in biogas plants, industrial processing and animal husbandry mud.

Because of the special SINT engineering polymer screw design, SEPCOM can be easily applied to various materials and applications. Special shape sieve basket can realize self cleaning and reduce wear.

technical parameter


describe

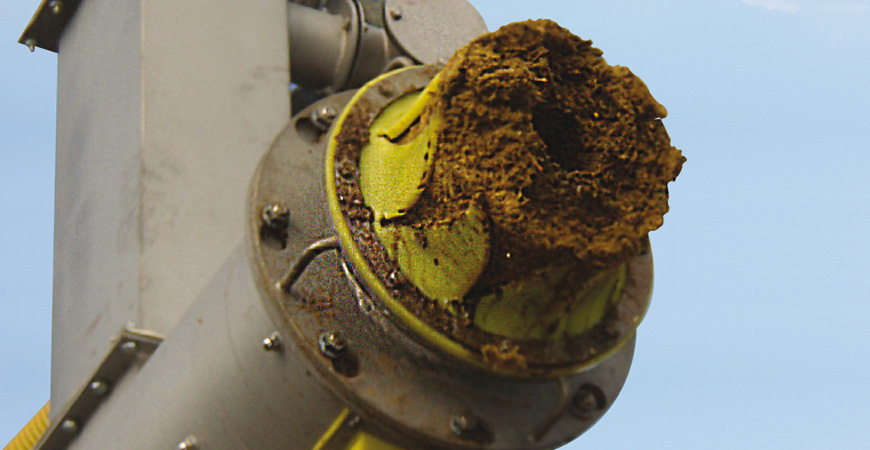

The SEPCOM Horizontal horizontal screw separating press consists of a feeding component with a compensation groove and an overflow hopper. The stainless steel case consists of a screw conveyor and a cylindrical screen basket, which is responsible for conveying and separating the solid phase from the liquid phase flowing through the filter, while the solid component is pressed to the back pressure film outlet formed by the plug. This enables automatic separation of the machine from the machine to avoid liquid phase washout.

The drive device consists of a motor and a reducer, which is equipped with an output shaft (directly connected to the conveying screw) connected by splines.


function

SEPCOM Horizontal is a solid liquid separation machine based on screw conveying technology. Machines perform separation by gravity compaction and mechanical compaction, aiming at separating solid and liquid phases of various materials, such as sludge, sewage, fertilizer, fruit and vegetable processing wastes and general solid-liquid mixtures. Among them, the percentage of liquid in solid may vary greatly. It is easy to handle solid-liquid phase separation and low cost.


Product features

O modular spiral is made of SINT wear-resistant engineering polymeric material: easy to operate, spare parts affordable.

O durable and high-performance self-cleaning basket

O is suitable for continuous operation.

advantage

O high performance abrasion resistant sieve basket

O has greatly reduced the overall management cost of solid-liquid separation of biogas slurry from pressure oxidizer.

O greatly reduces assembly and maintenance time.

O economical spare parts


option

O various types of film outlet

O various types of SINT engineering polymeric materials spiral

O multi sieve basket size



SEPCOM_COW_EN_1016_EDIT.pdf

SEPCOM_INDUSTRIAL_EN_1016_EDIT.pdf

SEPCOM_PIG_EN_1016_EDIT.pdf
